Window and Door Flashing Detail Options
06
Jan
Jan
OPTIONS TO TRIM AROUND DOORS AND WINDOWS
There are several options to trim around Doors and Windows when Metal Cladding is used.
Which one is right , depends on
- Where the Window/Door sits – flush or recessed
- What style/look you prefer
- Your skills as an installer
In the following , we are showing a few options how to trim a window/Door

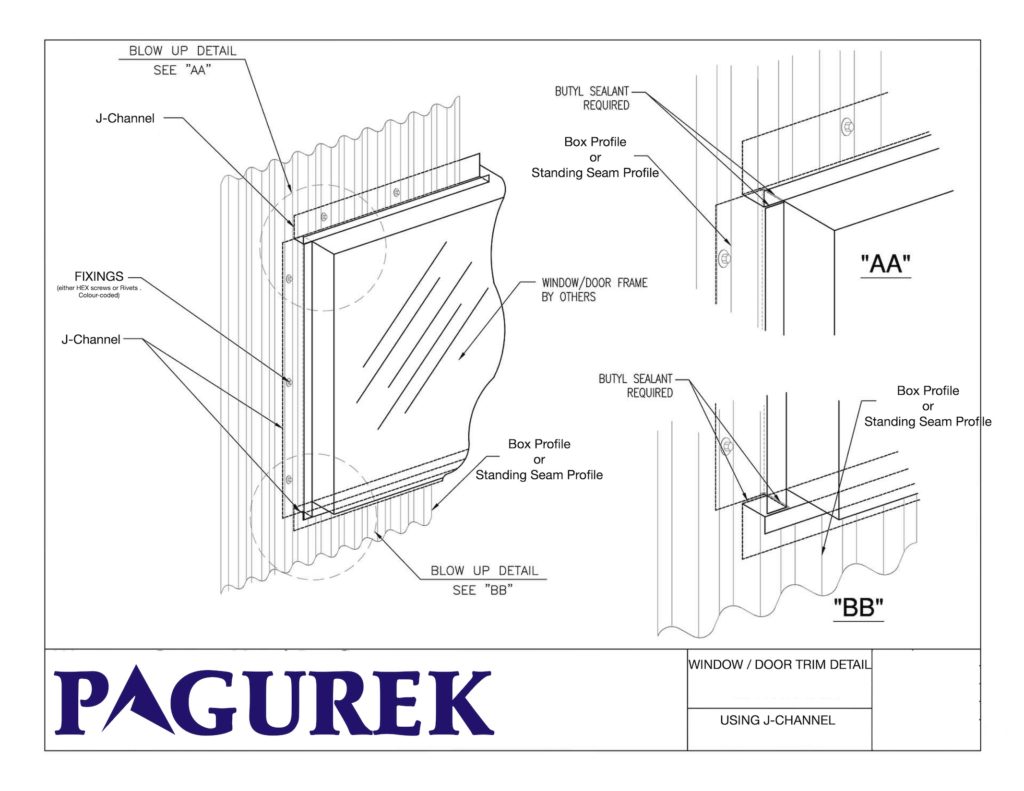

TRIM WITH J-CHANNEL FLASHINGS
J Channels are a save and relatively simple method of Installing Flashing Details with Metal Cladding around openings.
An in-depths explanation with a lot of details about a J-Channel trim installation

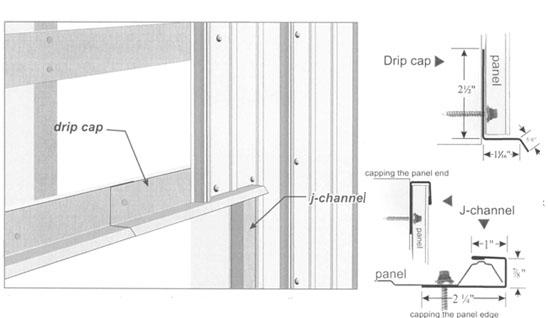

TRIM WITH DRIP CAP
Similar to using J Channels.
Just using a Drip cap at the header instead.

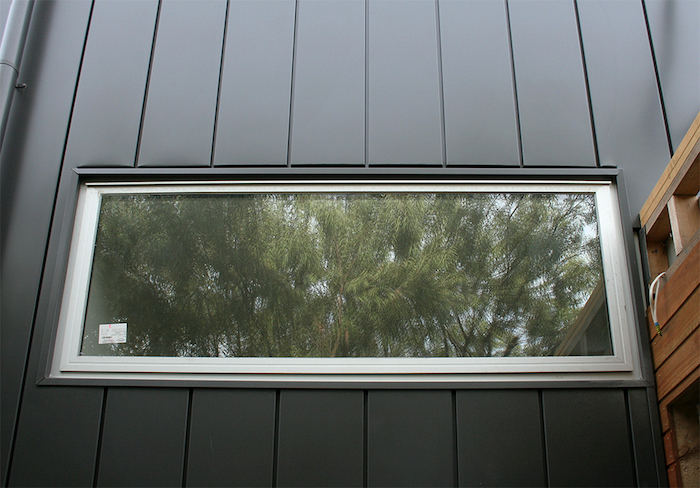

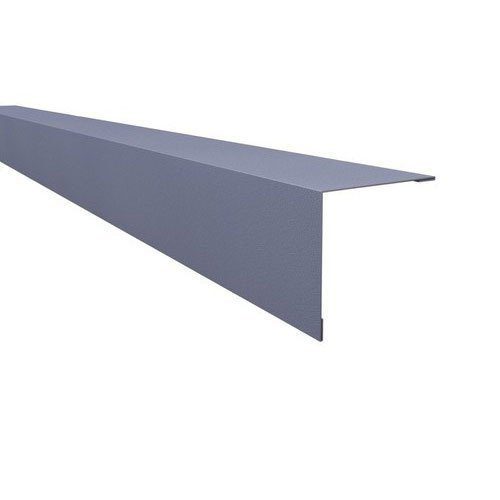

TRIM WITH STANDARD CLADDING CORNERS
Using a simple 50mm X 50mm cladding corner to trim around the Windows.
The fastest and simplest method of doing the Trim
